Water mill high-speed spiral vortex polishing machine

High-Speed Vortex Finishing Machine Vertical / Horizontal 50L / 120L | Precision Centrifugal Disc Surface Finishing & Polishing Equipment

Product Overview

This high-speed vortex finishing machine is a professional precision surface finishing equipment and a new-generation high-efficiency wet vortex grinding machine. It is designed in two structures: vertical vortex finishing machine and horizontal vortex finishing machine, with two mainstream standard capacities of 50L and 120L. It fully supports non-standard customization, serving as an ideal small parts batch polishing machine that replaces manual polishing and traditional vibratory finishing machines for mass hardware surface finishing.

As a professional centrifugal disc finishing machine and centrifugal disc deburring machine, the equipment generates strong vortex turbulence through high-speed rotation of the bottom variable-frequency disc. It creates three-dimensional rolling friction among workpieces, abrasive media and polishing compounds, rapidly completing multiple processes including metal workpiece deburring, deflashing, edge rounding, rust removal, oxide skin elimination and tool mark removal, as well as mirror bright polishing. It effectively solves the common problems of traditional equipment such as excessive grinding dead angles, workpiece stacking, uneven polishing and easy deformation, acting as a universal industrial metal deburring machine and metal burnishing machine.

Compatible with various hardware materials, this machine is widely used for batch finish machining of precision small parts, special-shaped parts and thin-walled parts. With stable operation and high batch consistency, it is a standardized, mass-producible and customizable vortex finishing machine, as well as a professional hardware deburring and polishing machine for industrial production.

Working Principle

The vortex finishing machine adopts the centrifugal vortex fluid grinding principle. The bottom driving disc runs at high variable-frequency speed, cooperating with a fixed grinding tank lined with wear-resistant PU material to force materials to form continuous spiral vortex movement. Workpieces and abrasives roll, rub and compress in all directions, penetrating into inner holes, gaps, edges and special-shaped curved surfaces of workpieces to remove burrs and surface defects evenly. It achieves uniform surface finishing and brightening effect without damaging the dimensional precision of workpieces. Vertical and horizontal models differ only in structural layout, sharing the same core vortex finishing principle and adopting wet batch precision grinding technology.

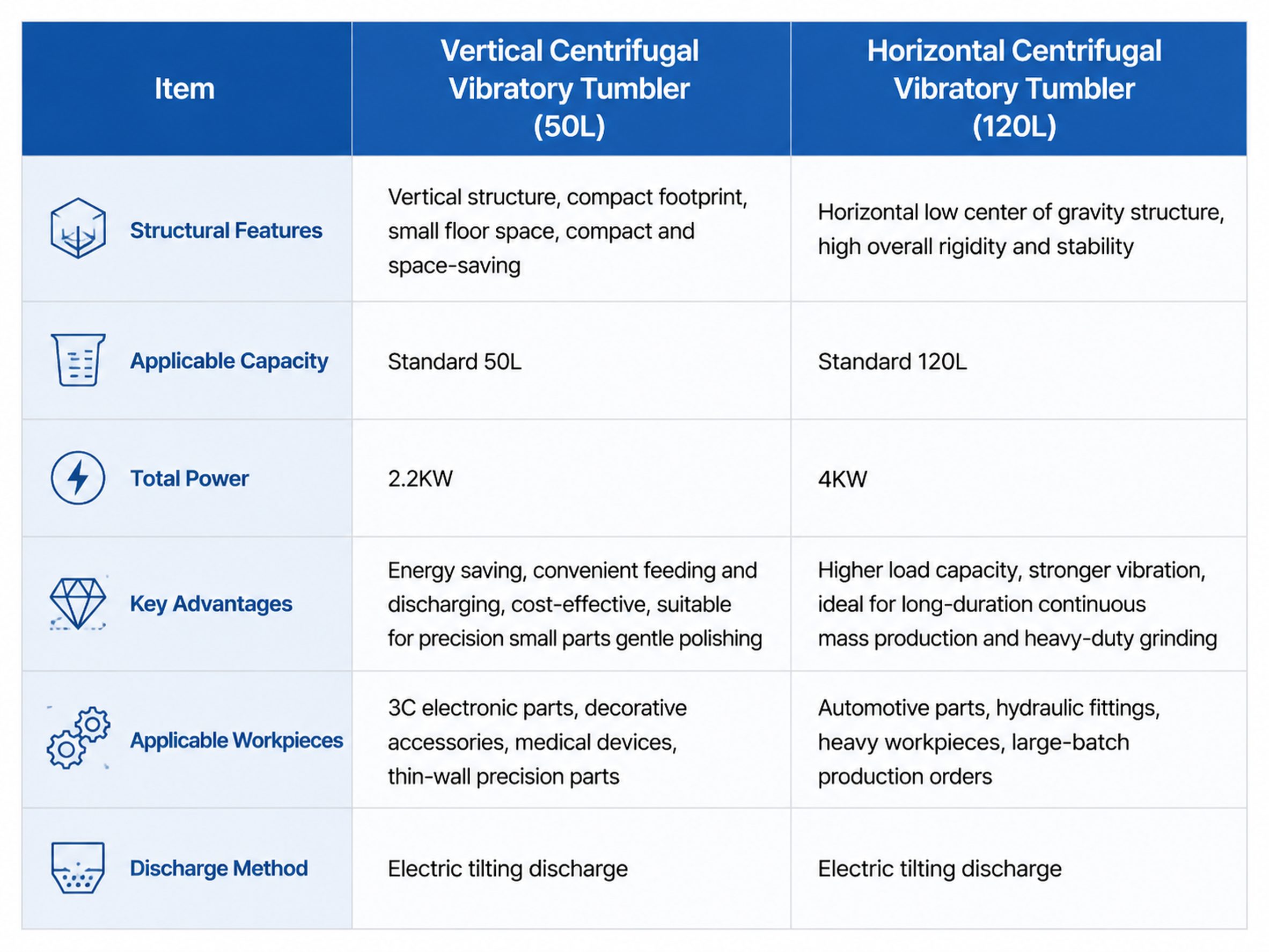

Vertical vs Horizontal Model Differences & Selection Guide

Core Product Advantages

1. Ultra-high Processing Efficiency: The processing efficiency is 10–30 times higher than traditional vibratory finishing machines. It completes deburring, chamfering and bright polishing in a short cycle, greatly improving factory production capacity.

2. Dual Models for Wider Compatibility: Vertical models are ideal for precision small parts and workshops with limited space; horizontal models adapt to large-capacity production and heavy-duty workpieces for continuous mass production, enabling targeted selection according to production demands.

3. Variable-frequency Stepless Speed Regulation & Intelligent Timing: Equipped with inverter and digital timer, the speed is adjustable from 0 to 220rpm. It supports gentle polishing, medium deburring and heavy-duty edge trimming, effectively protecting easily deformable precision workpieces.

4. Thickened Wear-resistant PU Lined Tank: The grinding tank is lined with high-density polyurethane material, featuring acid and alkali resistance, collision and scratch resistance for workpieces, corrosion resistance and long service life.

5. Uniform Grinding & Stable Batch Consistency: Vortex turbulent flow eliminates workpiece stacking and partial grinding defects. Complex curved surfaces, inner holes and gaps can be polished evenly, improving surface roughness by 1–2 grades with stable mass production quality.

6. Stable Operation & Low Noise Vibration: The machine runs with low vibration and less water splashing, keeping the workshop environment clean. The low-center design of horizontal models ensures higher stability during long-term continuous operation.

7. Wide Material Compatibility: It can process workpieces made of stainless steel, carbon steel, copper, aluminum, zinc alloy, powder metallurgy, plastic, ceramic and other materials.

8. Standard Models & Flexible Customization: Spot standard models include 50L vertical and 120L horizontal machines. Non-standard customization of capacity, voltage, configuration and structure is available to meet diverse production line requirements.

9. Simple Operation & Labor Saving: Featuring high intelligence, the machine allows one operator to manage multiple devices simultaneously. It is easy to operate and suitable for supporting small and medium-sized processing factories and large automated production lines.

Applicable Industries & Processing Technologies

This vortex finishing machine is widely applied in3C electronics, jewelry and watchmaking, medical devices, automobile and motorcycle accessories, general hardware, powder metallurgy, craft ornaments, tableware hardware and plastic parts industries.

Available processes: batch deburring, deflashing, edge rounding, chamfer trimming, rust removal, oxide skin removal, tool mark elimination, surface leveling, mirror bright polishing and pre-plating precision surface treatment.

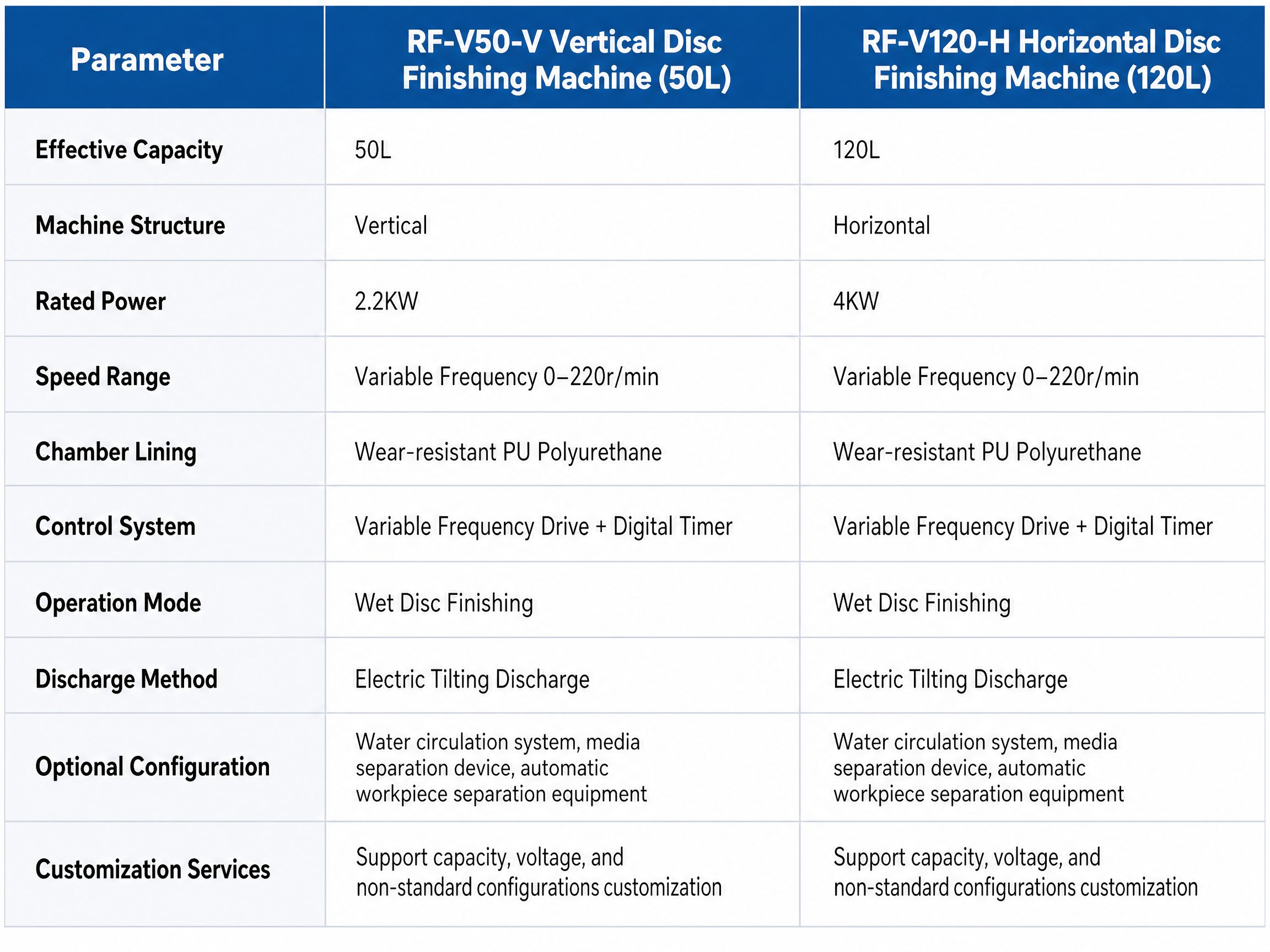

Technical Parameters

FAQ

Q1: How to choose between vertical and horizontal vortex finishing machines?

A: Choose the 50L vertical vortex finishing machine for small precision parts, thin-walled workpieces and workshops with limited space. Select the 120L horizontal vortex finishing machine for heavy-duty workpieces and large-batch 24-hour continuous production. Both models support personalized customization.

Q2: What are the advantages of vortex finishing machines over traditional vibratory finishing machines?

A: As a high-speed centrifugal vortex surface finishing device, our machine features far higher grinding efficiency than vibratory finishers. It avoids workpiece stacking and grinding dead angles, delivers more uniform polishing effects, and causes no damage to workpiece dimensional accuracy, making it perfect for high-precision batch deburring and polishing.

Q3: Can the machine process thin-walled and easily deformable parts?

A: Yes. By adjusting the variable-frequency speed and matching suitable abrasives and polishing compounds, the machine achieves gentle grinding, effectively preventing workpiece deformation and scratching, and is fully adaptable to all kinds of precision thin-walled parts.

Q4: What supporting consumables does the equipment need?

A: Conventional supporting consumables include grinding abrasives, polishing brighteners and clean water for wet processing. We provide complete consumable selection and process guidance for customers.

Q5: Is non-standard customization available?

A: Yes. We can customize vortex finishing equipment with different capacities, configurations and functions according to customers' workpiece size, production output, voltage and site requirements.v
