Vibration grinder (circular)

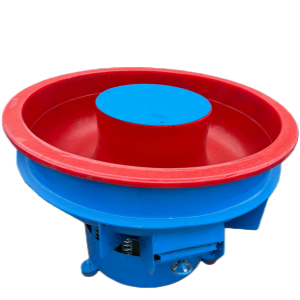

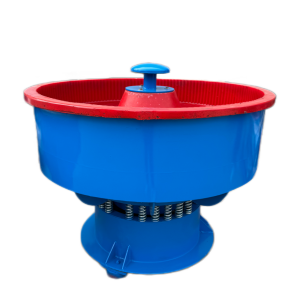

ZHENGUANGHUANG RF Series Vibratory Finishing Machine

1. Working Principle

ZHENGUANGHUANG RF series vibratory finishing machine, also known as vibratory polishing machine and industrial grinding equipment, is a mainstream industrial surface treatment device. It is equipped with a vertical vibration motor with eccentric counterweight blocks installed on the top and bottom ends. During operation, the eccentric blocks generate continuous centrifugal excitation force, driving the grinding tank to form stable 3D spiral composite vibration.

The grinding media, polishing liquid and workpieces inside the tank rotate, rise and tumble synchronously with the equipment. Gentle relative friction and slight collision between abrasives and parts create uniform and precise surface grinding results.

Different from rigid cutting equipment, this metal deburring machine adopts flexible surface treatment technology. The grinding media can perfectly fit workpiece curved surfaces, gaps and dead corners to realize dead-angle-free full-surface grinding and comprehensive precision surface finishing that traditional polishing machines cannot achieve. This non-destructive surface treatment process effectively removes burrs, flashes, oxide scales and surface defects without damaging the workpiece base material or changing dimensional accuracy, making it the optimal solution for precision part finishing.

2. Product Introduction

ZHENGUANGHUANG RF series vibratory finishing machine is an automatic batch surface treatment equipment developed for the metal processing industry. It integrates multiple functions including rust removal, edge rounding, degreasing, surface refinement and mirror polishing, replacing multiple single-function industrial grinding equipment. It completes full-process batch processing such as deburring, deflashing, edge radiusing, descaling, rust removal, degreasing, surface refining and mirror polishing in one cycle, widely applied in batch metal polishing for hardware, auto parts, medical hardware and jewelry industries.

Adopting flexible 3D spiral vibration processing, the machine preserves the original dimensional tolerance of workpieces and avoids collision deformation and surface scratches. Workpieces can be inspected at any time during operation for stable quality control. It is suitable for small part industrial polishing, precision part finishing and large-scale mass production. It perfectly replaces manual polishing and greatly reduces comprehensive production costs in hardware surface refinement and alloy part deburring procedures.

All RF models are equipped with durable industrial pure copper vibration motors, integrally cast thickened PU liners and high-strength shock-absorbing springs with waterproof and dustproof structure. As a low-noise industrial grinding machine, it runs stably with low failure rate and supports 24-hour non-stop heavy-duty industrial production, serving as core heavy-duty vibratory grinding equipment for mass manufacturing. As a professional vibratory finishing machine manufacturer, we consistently supply high-quality industrial vibratory polishing equipment.

3. Applicable Workpieces & Materials

3.1 Applicable Workpieces

Hardware fasteners, auto parts, motorcycle components, zinc-aluminum alloy die castings, furniture hardware, bathroom fittings, precision electronic parts, lock accessories, medical hardware, powder metallurgy products, jewelry, plastic and resin parts. It adapts to segmented finishing scenarios such as auto parts polishing and jewelry & medical parts polishing.

3.2 Applicable Materials

Stainless steel, carbon steel, iron, brass, copper, aluminum, zinc alloy, magnesium alloy, titanium alloy, plastic, resin, ceramic and bakelite. It meets diverse processing requirements including alloy part deburring, metal surface rust and grease removal, and uniform surface refinement for various materials.

4. Optional Configurations

Frequency Inverter: Freely adjust vibration intensity to match different workpieces and polishing standards, realize precise grinding control and meet precision part finishing requirements.

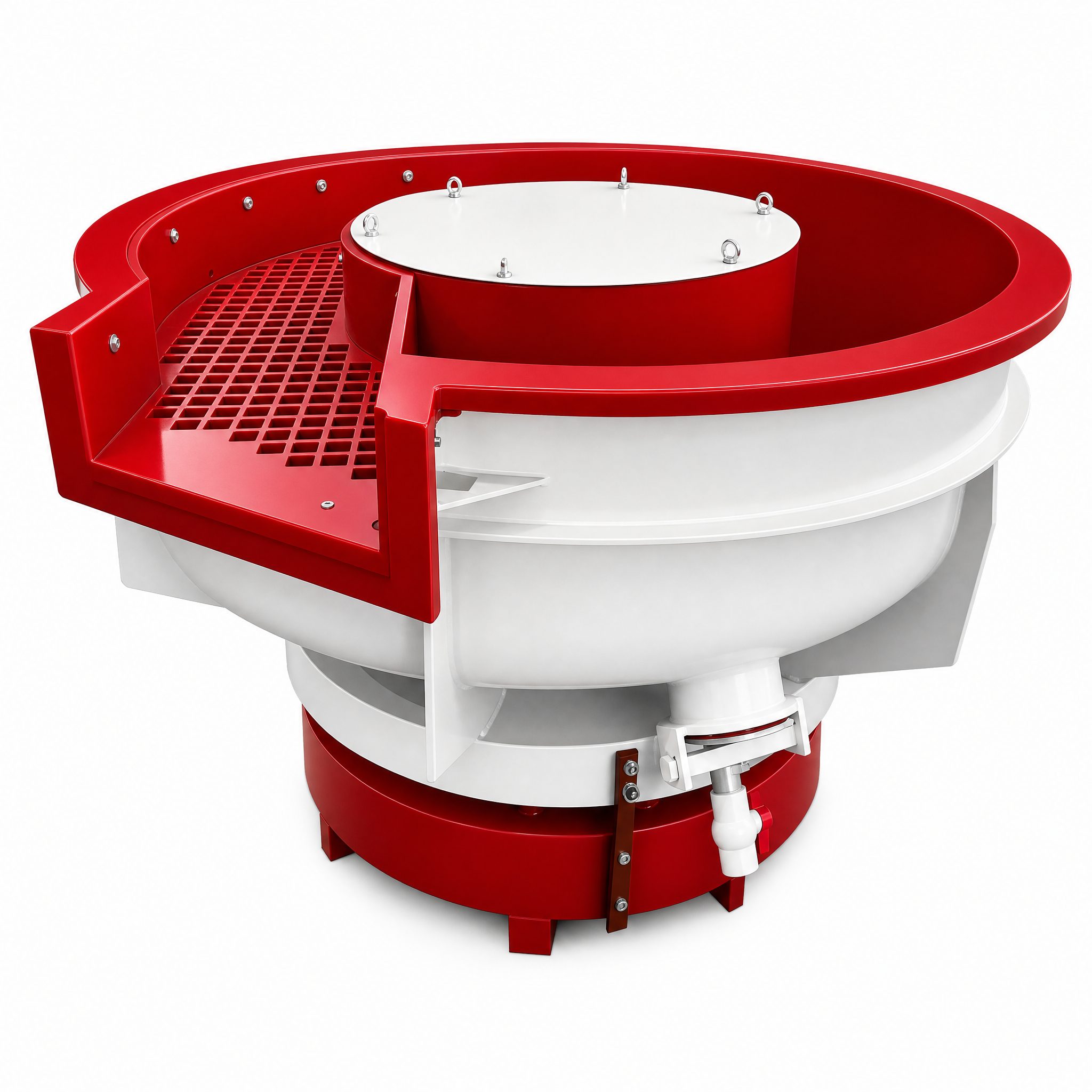

Automatic Sorting & Discharging System: Automatically separate workpieces from grinding media after processing, reduce manual labor, improve batch vibratory finishing efficiency and support large-scale mass production.

Sound Insulation Cover: Effectively reduce operating noise to meet factory environmental protection and safety production standards.

Circulating Drainage System: Continuously discharge dirty polishing liquid during operation to ensure uniform and high-quality workpiece surface treatment results.

Water Spraying System: Automatically supply water throughout processing to stabilize polishing technology and improve workpiece surface smoothness.

Custom Voltage: Support 220V/380V/415V custom voltage to fit global power standards. We provide CE-certified vibratory polishing machines to meet customized procurement needs of overseas clients.

5. Core Advantages

🔹 Dead-angle-free Full-surface Finishing: 3D spiral vibration realizes all-round workpiece polishing, eliminates traditional processing dead zones and ensures uniform gloss and consistent finishing for batch products, acting as a high-quality hardware part vibratory polishing machine.

🔹 Thickened Wear-resistant PU Liner: Integral casting technology delivers excellent wear resistance and acid & alkali corrosion resistance, effectively preventing workpiece scratches and deformation.

🔹 Industrial Pure Copper Motor: Stable power output and ultra-low failure rate, supporting 24-hour continuous heavy-duty factory operation.

🔹 Simple Operation & Low Cost: User-friendly design enables one operator to manage multiple machines with extremely low daily maintenance costs.

🔹 Custom Industrial Solutions: Rich optional accessories meet personalized grinding and finishing demands for various industries and workpiece types.

🔹 Full Model Coverage: Complete product range covers laboratory test machines, small-batch production equipment and large-scale industrial mass-production machines. As a reliable high-precision vibratory finishing machine supplier, we provide one-stop industrial surface treatment solutions for all industries.

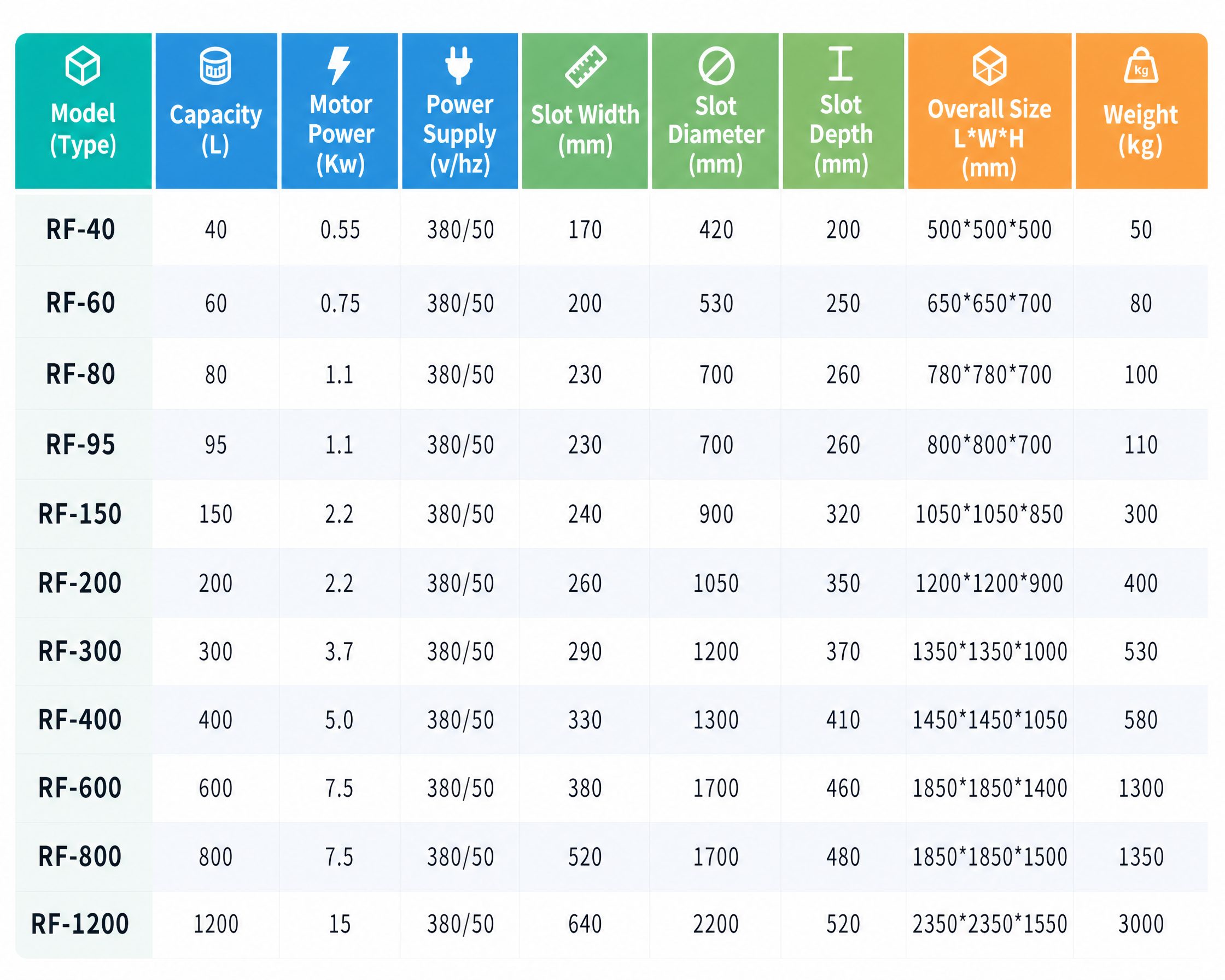

6. Full Series Specifications

7. Why Choose ZHENGUANGHUANG

1. 1.Factory direct supply without middlemen, competitive price for bulk export orders.

2. 2.Strict pre-delivery inspection including vibration stability, noise and waterproof test to guarantee reliable quality.

3. 3.Rich export experience, familiar with overseas factory requirements, CE documents available, export wooden case packaging.

4. 4.Provide free sample polishing test and customized surface finishing process solutions.

5. 5.Long-term supply of original spare parts, remote online technical guidance for global customers.

6. 6.Support customized voltage, configurations and structural adjustment according to production demands.

8. FAQ

1. Q1: Are complex special-shaped workpieces, thin-walled and easily deformable products suitable for this machine?

   A1: Very suitable. This machine adopts 3D flexible vibration grinding principle with no rigid impact or strong cutting. The processing is gentle. It can handle workpieces with deep grooves, curved surfaces and special-shaped structures perfectly. For thin-walled and easily deformed precision parts, we can match special abrasives, adjust vibration frequency and processing time to formulate exclusive processes, effectively avoiding deformation and collision damage.

   Q2: Will processing wear workpiece size and affect tolerance?

   A2: Vibratory grinding removes material in tiny volume. Standard processing will not affect workpiece dimensional tolerance, ideal for precision component processing.

   Q3: How long is one processing cycle?

   A3: Normal cycle lasts 30–120 minutes. Specific time depends on workpiece material, burr condition and required surface finish.

   Q4: Does this machine support dry polishing? Can both dry and wet processes be realized?

   A4: Standard machine is designed for wet polishing, working with polishing liquid and grinding media for better deburring and brightening effect without damaging parts. Dry polishing is a special customized solution, which requires lining modification and professional dust removal equipment. Standard machines cannot run dry polishing directly. Dry-wet dual-purpose models can be customized on request.

   Q5: Which components need regular replacement?

   A5: PU lining and shock-absorbing springs are wearing parts. We can supply original spare parts continuously.
