Vibration dryer

Vibratory Dryer | Mass Finishing Corn Cob Media Drying Machine

The vibratory dryer, also known as the vibratory drying machine or automatic vibratory dryer, is a professional vibratory finishing dryer and essential supporting equipment for wet grinding and mass finishing production lines. As dedicated metal parts vibratory drying equipment and a standard export vibratory dryer, it is specially designed for vibratory drying machine after vibration grinding to process wet workpieces with water stains and residual finishing compounds after wet vibratory finishing.

Adopting the exclusive working principle of a corn cob media vibratory dryer, the machine uses heated corn cob particles as drying media to complete workpiece dehydration, residue removal and slight surface polishing in one continuous vibratory operation. Available in dual operating modes including batch vibratory dryer and continuous vibratory dryer, this unit perfectly matches complete mass finishing production systems and can be directly connected to vibratory finishing machines and automatic mass finishing lines. It serves as a universal vibratory dryer for precision parts and reliable metal component vibratory dryer for global manufacturing plants, acting as indispensable core drying equipment for wet mass finishing processes.

1. Working Principle

As a high-performancevibratory drying machine after vibration grinding, wet workpieces discharged from wet vibratory finishing equipment are fed into the drying bowl through the feeding chute. Heating elements installed at the bottom evenly warm the internal corn cob media based on the core technology ofcorn cob media vibratory dryer. Under the excitation of the vibratory motor, workpieces and heated corn cob media perform stable 3D tumbling motion.

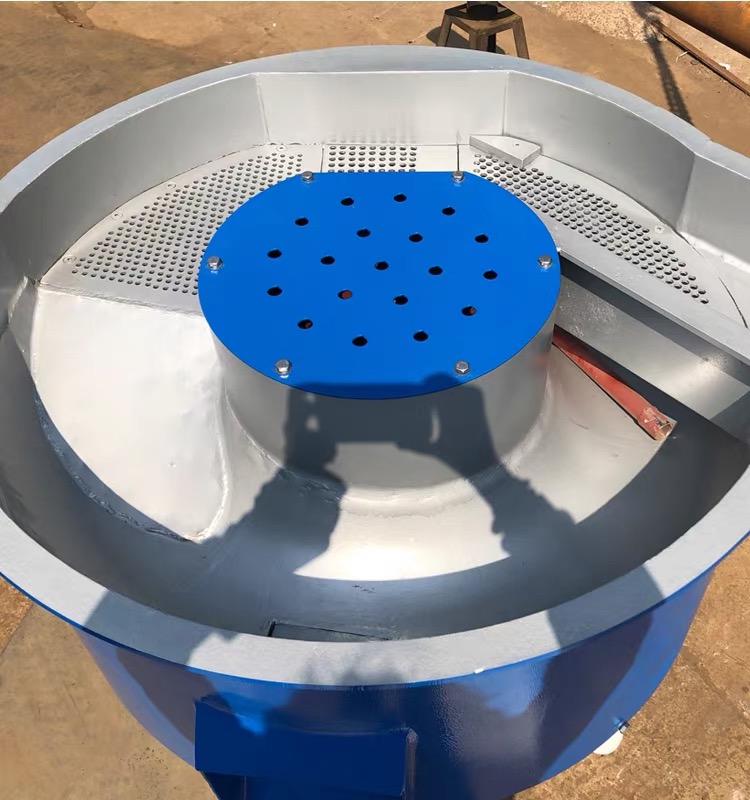

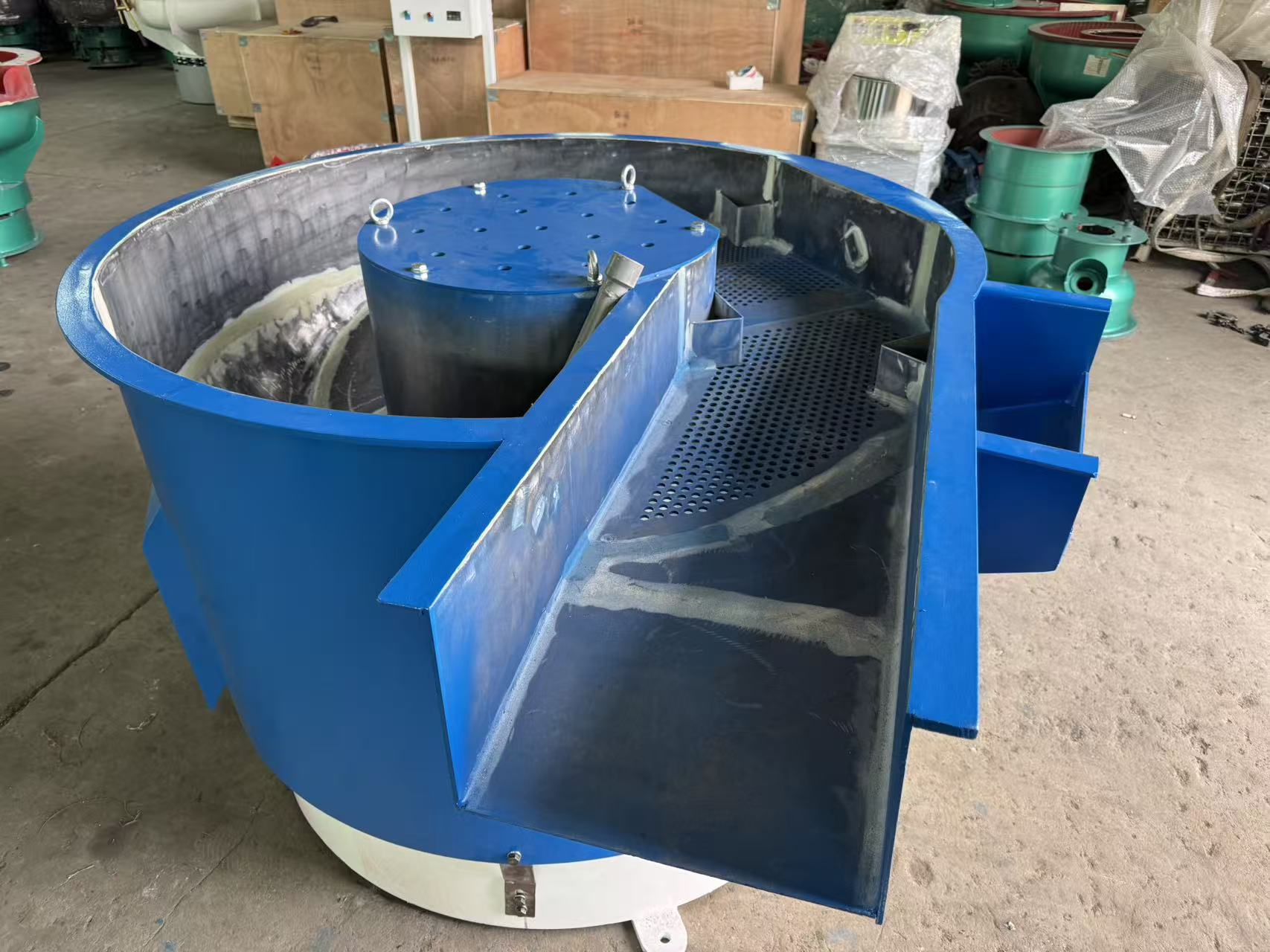

The corn cob media fully fits and contacts the workpiece surface, strongly absorbing surface moisture and thoroughly removing residual grinding compounds from gaps and blind holes to achieve fine and uniform light polishing results. Equipped with an extended separation sieve at the discharge end, the machine realizes 100% automatic separation between workpieces and corn cob media. It completely solves the material mixing problems commonly found in traditional batch vibratory dryers and continuous vibratory drying machines. Dry finished workpieces are discharged smoothly while the drying media circulates internally without manual sorting, fully meeting the automatic production requirements of mass finishing line supporting dryer systems.

Complete Working Process

1. Loading: Wet finished workpieces enter the drying bowl via the feeding chute.
2. Heating & Vibrating: Heating elements warm up corn cob media; vibration drives full tumbling of workpieces and media.
3. Drying & Cleaning: Corn cob absorbs moisture and residual compounds while performing mild surface polishing.
4. Separating & Discharging: The separation sieve completely separates parts from media; dry workpieces exit and corn cob media recycles continuously.

2. Applications & Suitable Workpieces

Custom-developed for wet vibratory finishing and vibration grinding scenarios, this professional vibratory dryer effectively solves common defects such as water spots, surface stains and oxidation on post-processing workpieces. It is specialized metal parts vibratory drying equipment and vibratory dryer for precision parts widely used in hardware processing and precision manufacturing industries.

It is perfectly suitable for hardware die castings, stamping parts, fasteners, CNC machined parts, aluminum alloy parts, copper parts, zinc alloy parts, stainless steel precision components and miniature jewelry parts after deburring and polishing procedures. Featuring dual working modes of batch and continuous operation, the machine adapts to both small-batch workshop processing and large-scale automatic assembly line mass production, making it a mainstream mass finishing line supporting dryer for precision component processing lines worldwide.

Advantages Over Traditional Drying Equipment

Traditional ovens only dry outer surfaces and fail to remove compound residue from blind holes and recesses. Air blast equipment can only blow away free water but cannot eliminate residual compound films. Differently, this vibratory finishing dryer relies on physical contact with corn cob media to complete dehydration, residue cleaning and light polishing simultaneously, delivering ultra-clean, spot-free workpieces that are ideal pre-treatment for electroplating, coating and surface finishing processes.

3. Core Advantages

3-in-1 Function: Drying, Residue Removal & Light Polishing
As a professional corn cob media vibratory dryer, it rapidly removes surface moisture and deeply cleans hidden residual grinding compounds from blind holes and grooves. It eliminates water spots, stains and corrosion risks comprehensively, significantly improving the pass rate of subsequent electroplating, spraying and anodizing processes. It is one of the most functional models among all vibratory drying machine after vibration grinding equipment.

Full Automatic Parts and Media Separation
The extended built-in separation sieve achieves 100% complete separation between workpieces and corn cob media during discharging. No manual sorting is required, effectively saving labor costs and fully adapting to automated mass production standards.

Dual Production Modes for All Capacity Demands
Integrating batch vibratory dryer and continuous vibratory drying machine dual operating systems, it covers small-batch trial processing, sporadic orders and high-volume continuous assembly line production. As a highly versatile automatic vibratory dryer, it perfectly matches the supporting needs of variousmass finishing production lines and fits capacity planning for small, medium and large factories.

Variable Vibration & Independent Precise Temperature Control
Equipped with a variable frequency drive system to freely adjust vibration force, protecting complex and delicate precision parts from collision damage. The independently adjustable bowl temperature allows customized drying temperatures according to different workpiece materials and technical requirements, ensuring stable and reliable drying quality for all types of parts.

Stable Operation with Optimized Configuration
Standard dust-proof and noise-reduction cover effectively reduces operating noise and workshop dust pollution. The machine features stable performance, low failure rate and low long-term maintenance costs, ensuring continuous and reliable production operation.

Strong Compatibility & Standard Export Grade
As a high-quality export vibratory dryer, it can be seamlessly connected with various vibratory finishing machines and automatic mass finishing lines for quick system integration. Manufactured strictly according to international industrial standards, it adapts to three-phase voltage in most countries. It is the preferred metal component vibratory dryer and mass finishing line supporting dryer for overseas precision processing enterprises, supported by complete cross-border installation guidance, official warranty and lifelong after-sales service.

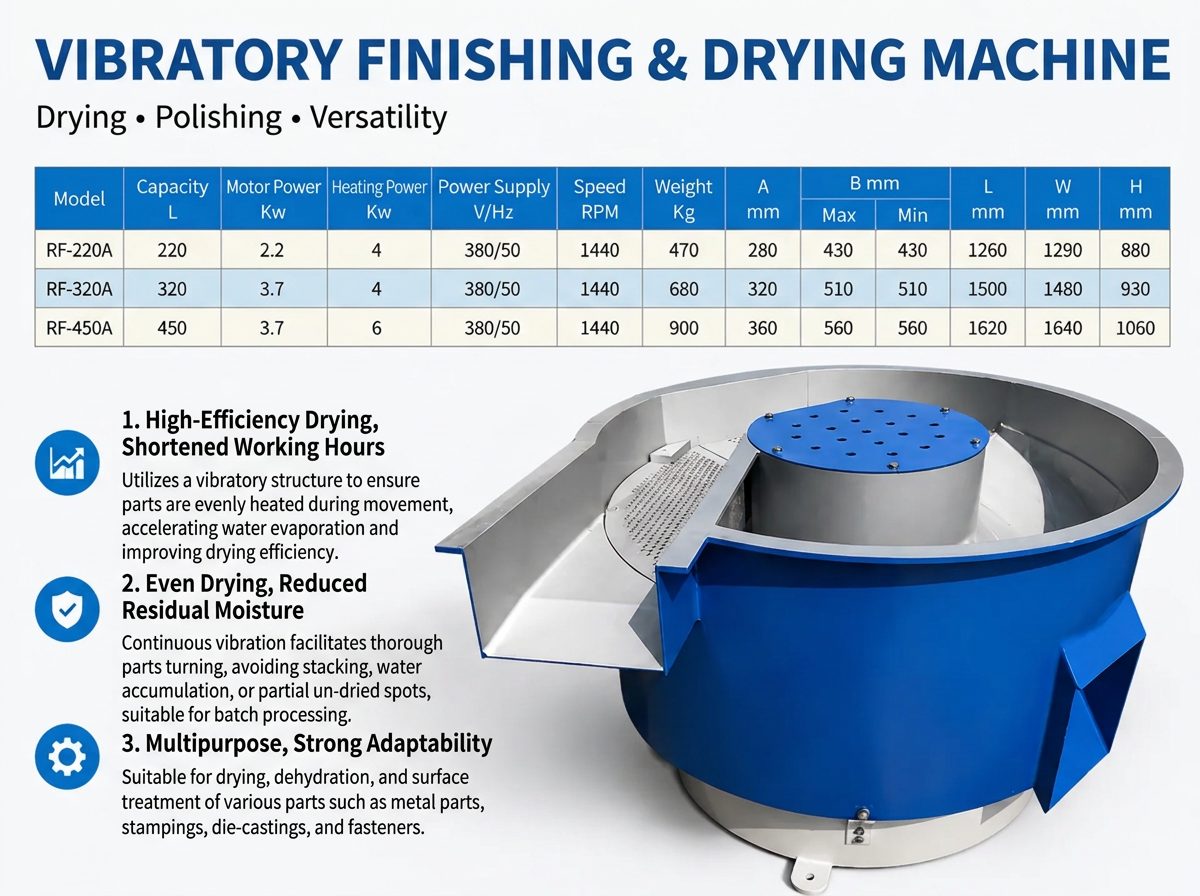

4. Technical Specifications

Note: Custom sizes and specifications are available on request. Matching corn cob drying media can be supplied as supporting accessories.

5. Product Summary

This multifunctional vibratory dryer / vibratory drying machine is the core supporting equipment for wet vibratory finishing and vibration grinding processes. Leveraging the unique technical advantages of the corn cob media vibratory dryer, it solves typical industrial pain points including workpiece water stains, compound residue and surface oxidation, integrating dehydration, residue cleaning and mild polishing in one single unit.

Available in batch vibratory dryer and continuous vibratory drying machine models, it fully adapts to all mass finishing production lines and is professionally customized for metal precision component drying. It delivers high-purity, spot-free and corrosion-free workpieces that perfectly support subsequent electroplating, spraying and anodizing processing. As a cost-effective export vibratory dryer and professionalvibratory dryer for precision parts, it is widely adopted in hardware and precision manufacturing industries worldwide, serving as the optimal upgradedvibratory drying machine after vibration grinding to replace traditional drying equipment and improve overall workpiece quality and production efficiency.
